inconel 718 sheets and plates supplier in india,saudiarabia
(AMS 5596, ASTM-B-670, B50TF14 Class A&E, UNS N07718)
B 670,ASTM B 637,Haynes 718 (Haynes International) ,ATI 718 (Allegheny Technologies), Inconel Alloy 718 (Special Metals),Nicrofer5219, Alvac 718.

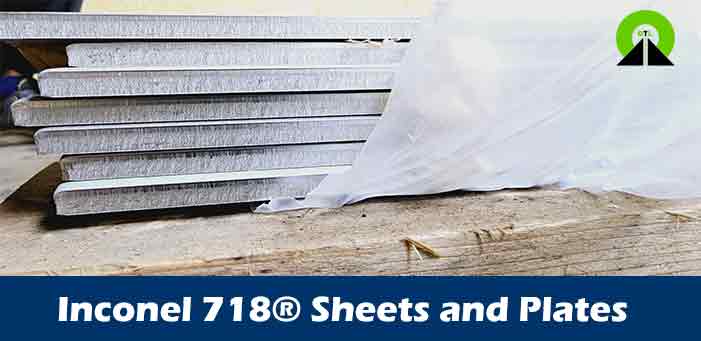

Inconel alloy 718 Sheets & Plates are superalloy materials which are made up of nickel as a primary chemical element. For the distinguished properties and features of Inconel 718 Sheets, they have a huge demand across the world. we are an illustrious Inconel 718 Sheets & plates Stockist & Supplier in india and all around the globe.
we are one of the Renowned importers & exporter of Inconel 718 Sheets & Plateswhich are known best for their exceptional features and properties. we stock inconel 718 sheets in india and supply saudiarabia, U.A.E.,egypt and African countries.
Inconel Alloy 718 is a precipitation-hardening nickel-chromium alloy containing significant amounts of iron, columbium, and molybdenum, along with lesser amounts of aluminum and titanium. It maintains good corrosion resistance and oxidation resistance and is used for parts requiring high resistance to creep and stress rupture up to 1300°F (704°C) and oxidation resistance up to 1800°F (982°C).
Common Trade Names
- Haynes 718(Haynes International)
- ATI 718 (™ Allegheny Technologies)
- Inconel Alloy 718(Special Metals)
- INCONEL Alloy 718 (Haynes)
Specification of ASTM B670 Inconel 718 - Ask a Question
| Grades | Inconel 718 (UNS No. N07718) / AMS 5596AMS 5597GE B50TF14ASTM B-670 |
| Standards | ASTM, ASME and API |
| Specifications | ASTM B 670 / ASME SB 670 |
| Range | 5 mm To 50 mm thick in 1000 mm TO 1250 mm width & 2500 mm Length. |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
Inconel 718 Sheet & Plates Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 718 | 2.4668 | N07718 |
Chemical Composition of Inconel Alloy 718 Sheet & Plate
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | - | 50 - 55 | 17 - 21 |
Mechanical Properties of Inconel 718 Sheet & Plates
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Features of Inconel 718 Sheets & Plates
- High creep-rupture strength
- Oxidation resistant to 1800°F
- Good fatigue resistance
- Excellent weldability
- Outstanding resistance to chloride pitting and crevice corrosion
- Immune to chloride ion stress corrosion cracking
- Resistant to seawater under both flowing and stagnant conditions and under fouling
Applications of Inconel 718 Sheets & Plates
- Aircraft ducting systems
- Jet engine exhaust systems
- Engine thrust-reverser systems
- Bellows and expansion joints
- Turbine shroud rings
- Flare stacks
- Seawater components
- Chemical process equipment handling mixed acids both oxidizing and reducing.
Inconel 718 Sheet & Plate price in india.
- Inconel 718 Hot Rolled Sheet & Plates Stock
US / Metric Ton (FOB Price) on request - Inconel Alloy 718 Sheet & Plate
US / Metric Ton (FOB Price) on request - ASTM B168 Inconel 718 CR Sheet & Plate
US / Metric Ton (FOB Price on request - Inconel 718 Export Quality Sheet & Plates
US / Metric Ton (FOB Price) on request - Inconel 718 High Tensile Sheet & Plates
US / Ton (FOB Price) on request - Cold Rolled Inconel 718 Sheet & Plates
US / Ton (FOB Price) on request
With the large scale of supplying Network & Ability to cater Giant Project in various large Industries to supply our products as all types of inconel 718 roundbars , inconel 718 roundbars inconel 718 wires, inconel 718 welding rods, right now we are exporting our products in all Major countries all over the world.
