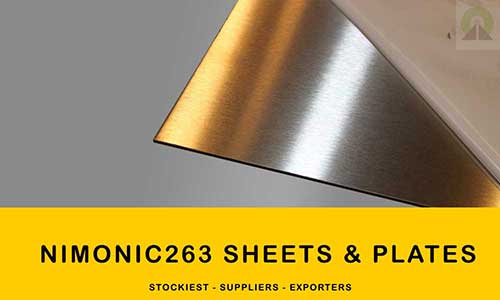

Nimonic C263 Sheets 7 plates

Importers,stockiest and suppliers.

NIMONIC263 UNS N0726 - Nimonic 263® or Haynes 263®

Nimonic C263 sheets & plates precipitation-hardenable nickel-chromium-cobalt alloy with an addition of molybdenum for solid-solution strengthening.

Nimonic C263 sheets & plates has high strength and corrosion resistance along with good formability and high-temperature ductility in welded structures.

Nimonic C263 sheets & plates is especially suitable for sheet applications. Used in gas turbines for rings, casings, and various sheet fabrications.

Specifications : ASTM B463 / ASME SB463
Standard : ASTM, ASME and API
Specialize Shim Sheet, Perforated Sheet, B. Q. Profile.
Size : 0.5 MM TO 200 MM THICK IN 1000 MM TO 2500 MM WIDTH & 2500 MM TO 12500 MM LENGTH
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Grade : Nimonic 263 (UNS N07263 )

Nimonic 263 Plates Equivalent Grades

STANDARD WERKSTOFF NR. UNS
Nimonic 263 2.4650 N07263

Nimonic 263 Plates Chemical Composition :

Grade Ni Co Cr Mo Ti Fe Mn Al Si Cu C B S
Nimonic 263 49 19-21 19-21 5.60-6.10 1.90-2.40 0.70 0.60 0.60 0.40 0.20 0.040 – 0.080 0.0050 0.0070

ASTM B463 Nimonic 263 Plates Mechanical Properties:

Grade
 Material
Sheet		 Temperature °C Yield Strength 0.2 % (MPa) Tensile Strength (MPa) Elongation (%) Hardness HV
Nimonic 263 Nimonic 263 Sheet
Solution Treated (AMS 5872 / BS HR206)		 RT – – – 22.5 max
Nimonic 263 Sheet
Heat Treated (AMS 5872 / BS HR206		 RT 580 (typical) 973 (typical) 39 – –
Nimonic 263 Sheet
Heat Treated (AMS 5872 / BS HR206		 780 403 (min) 541 (min) 9 –

Nimonic 263 Plates Physical Properties:

Density: 0.302 lb/in3 – – – – –
Grade Melting Range: 2372-2471°F – – – – –
Nimonic 263 Temperature, °F 400 800 1000 1200 1400 1800
Coefficient* of Thermal Expansion,
in/in°F x 10-6		 6.7 7.4 7.7 8.1 8.7 10.2

Types Of Nimonic 263 Plates

Nimonic 263 Plates Nimonic 263 Plates
Nimonic 263 Plates Nimonic 263 Sheets
263 Nimonic Coils 263 Nimonic strips
ASTM B463 Nimonic 263 Chequered Plates
 ASME SB 463 Nimonic 263 Plates
Nimonic 263 Structural Steel Plates Nimonic 263 Bright Plates
DIN 2.4650 Nimonic Plates UNS N07263 Nimonic Plates
Nimonic 263 Plates Exporter Nimonic 263 B463 Plates Suppliers
263 Nimonic SB 463 Sheets Stockist Nimonic UNS N07263 SB 463 Plates
2.4650 B463 Nimonic Plates Distributor N07263 SB463 Nimonic Plates manufacturer
B463 N07263 Nimonic Sheets Stockholder High quality Nimonic 263 Plates
Nimonic 263 SB463 cold rolled Sheets B463 Nimonic 263 Hot rolled strips
Nimonic 2.4650 N07263 cold rolled strips N07263 Nimonic B463 Hot rolled Sheets

The NIMONIC alloy 263 is used in the following applications:

  • Gas turbine engineering
  • Automobile exhaust valves
  • Die-casting inserts and cores
  • Nuclear boiler tube parts.
